Japanese automakers are famend for his or her sturdy, dependable vehicles, and choose engines are sometimes described as bulletproof or unkillable. In many instances, simple engineering selections find yourself delivering high quality machines, whereas common sense manufacturing strategies prevail for others. After all, within the Nineteen Eighties, Toyota constructed a California manufacturing unit along with GM and taught it the way to construct a high quality automobile by implementing Toyota manufacturing practices. But among the many quite a few bog-standard Japanese four-cylinder and V6 engines, there are a couple of that stand out.

Advertisement

Within a multinational manufacturing company delivering cars to all elements of the globe, there are going to be some product developments that stray from the norm. Good engineering requires a level of cleverness and creativity. For each time an automaker delivers a sturdy and predictable engine for a mainstream sedan, there are going to be a couple of experiments that by no means make it to improvement. However, often, experiments make it properly previous the testing part and right into a manufacturing automobile or onto the racing circuit. Many intelligent and weird merchandise might be attributed to Japanese ingenuity, and listed below are 12 engines to incorporate amongst them.

Many Japanese bikes produced within the years after World War II used two-stroke engines. Although two-stroke engines are easy and low cost to make, they usually can present wonderful energy with good reliability, Soichiro Honda, founding father of the eponymous producer, hated them and labored to create aggressive four-stroke machines as a substitute.

Advertisement

Between 1979 and 1981, Honda fielded its NR500 Grand Prix race bike powered by a V4 engine with eight valves-per-cylinder facilitated by utilizing oval pistons. However, it failed to realize any large wins, forcing Honda to change to two-stroke machines in 1982. Still wanting to construct a aggressive four-stroke bike, Honda revisited the oval piston concept and created the NR750, a V4 motorbike with a complete of 32 valves, eight spark plugs, twin throttle our bodies, and an “8-into-4-into-2-into-1-into-2 exhaust system,” based on Cycle World. With a brief stroke, the V4 constructed energy instantly, persevering with seamlessly to its spectacular 15,000-rpm redline.

Oval pistons are the anomaly of engine anomalies. This setup made it attainable to create an engine with the elements of a V8 in a rule-abiding V4 configuration. It by no means made for a race-winning bike, however it did exhibit Honda’s engineering superiority. Furthermore, Honda solely constructed 300 copies of the NR750 and bought them for $50,000 in 1992, the most costly Honda motorbike to that date.

Advertisement

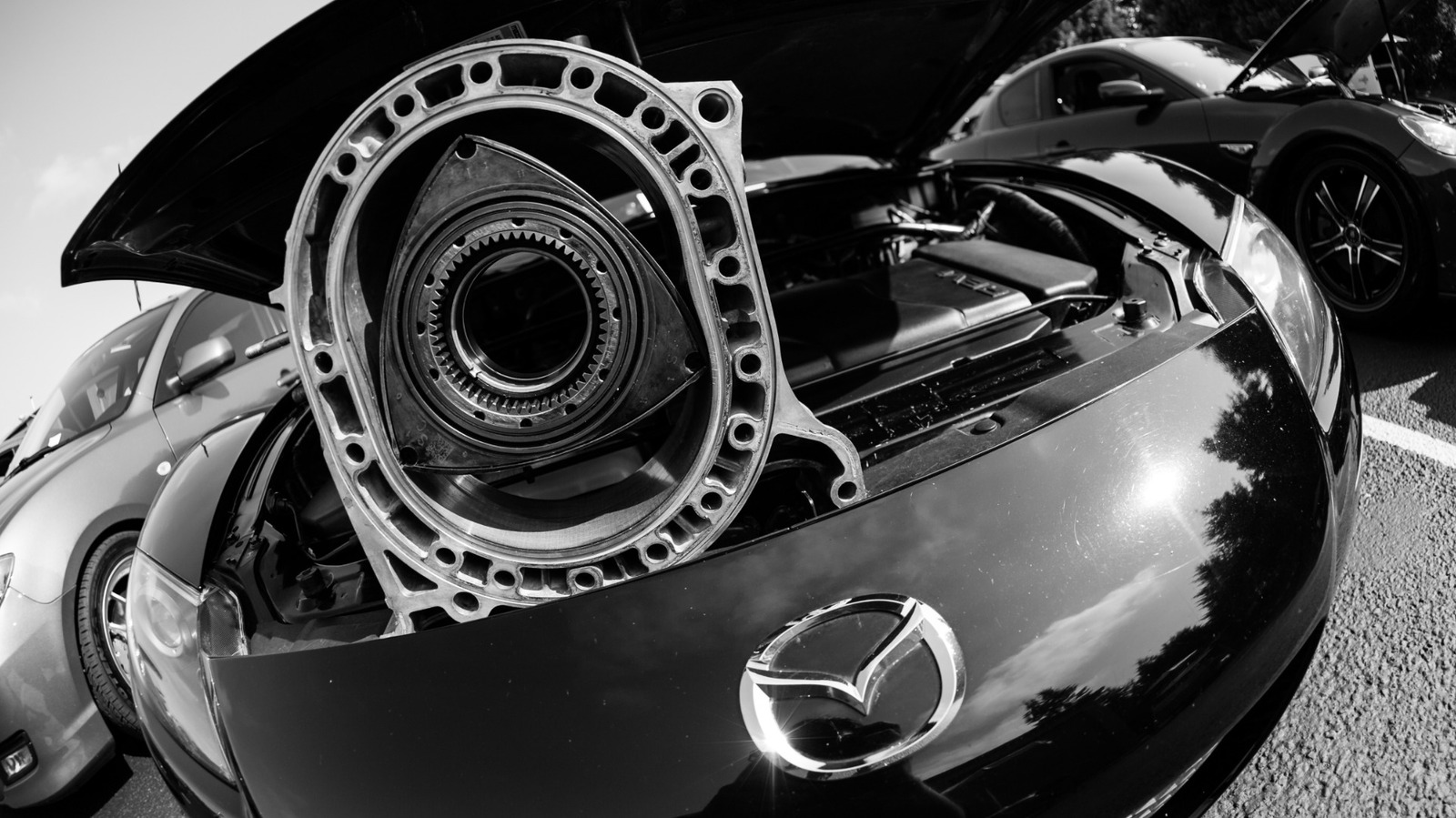

Although the intelligent rotary engine was invented by an enthusiastic supporter of the Nazi get together, Felix Wankel, that did not cease Mazda from buying the rights to make use of the design. Mazda developed it additional than another firm has thus far. The iconic rotary engine discovered its manner right into a collection of Mazda vehicles, together with the RX-2 via RX-5, the Japanese-market-only Cosmo, and the American-market-only REPU pickup, however it was the RX-7 that caught and proved the triangle-powered engine’s endurance.

Advertisement

Unlike typical engines, the Wankel engine makes use of a triangle-shaped rotor with few shifting elements to finish the Otto cycle through consumption and exhaust ports, shifting the combustion chamber in an rectangular path. This movement turns the eccentric shaft within the middle of the rotor, transferring movement again to the transmission. There are not any valves, camshafts, lifters, rockers, timing chains, or dozens of different elements that price effectivity and current alternatives for engine failure. It is an uncommon engine certainly.

Since a Wankel engine has fewer elements, it’s simpler to fabricate and lighter than typical engines. But in case you are questioning why Mazda is the one firm that has ever used it extensively, it has flaws. Even when a Wankel produces loads of horsepower, its torque output is abysmal. Furthermore, the surfaces on the perimeters and suggestions of the rotors are tough to seal, and its gasoline effectivity is horrible, which is why most firms deserted the expertise within the ’70s.

Advertisement

When Toyota wished to go upscale, it launched Lexus to the American market in 1989. And though the Lexus LS400 proved Toyota knew the way to do luxurious, many in Japanese society had already acknowledged this reality. Back in 1968, Toyota started promoting a automobile made for essentially the most discerning of the normal Japanese enterprise class with the type of refinement anticipated by royalty. Furthermore, it grew to become the one manufacturing automobile from Japan powered by a V12.

Advertisement

Despite being in manufacturing since 1968, the Century has solely seen two full overhauls. The first technology, powered by a classy V8, lasted 30 years earlier than being changed in 1997 with a brand new technology that includes an all-new V12 engine up entrance. The newest technology arrived in 2017. Featuring 48 valves, 4 camshafts, a counterweighted crankshaft, and 5 liters of displacement, the 1GZ-FE V12 was not developed for making excessive horsepower whereas spinning as much as most redline like an Italian bull. This engine obtained 12 cylinders for the sake of smoothness and refinement, offering plentiful momentum in obscurity.

The luxurious propulsion supplied by this V12 matches the opulence of the remainder of the automobile. Each one is hand-built by Toyota’s finest craftsmen, with such element that even the body-forming instruments are custom-fitted to every employee’s arms. When full, it’s perfection in movement, draped in reserved opulence, powered by essentially the most uncommon engine from Japan, a V12.

Advertisement

Although by no means one in all Japan’s largest automakers, Mazda has a protracted historical past of making progressive vehicles with partaking driving experiences and trendy designs. Given its dedication to the Wankel rotary engine, the automaker will not be afraid to take dangers and introduce unorthodox designs. In the early ’90s, Mazda produced one of many smallest V6 engines ever bought.

Advertisement

In 1991, Mazda launched the enjoyable and sporty MX-3 as a small however full of life automobile appropriate for youthful patrons with out requiring the additional area wanted for a household. It was an reasonably priced sporty coupe with good styling at a time when there was demand for such vehicles – few vehicles like this exist right now. As a front-wheel-drive automobile, you may assume it to have an engine much like different vehicles of the day — a four-cylinder within the vary of 1.5 to 2.0 liters. Instead, Mazda break up the distinction and added two cylinders.

The 1.8-liter K8-DE V6 is an unbelievably small V6 with a decent output of 130 hp, though equal four-cylinders provided extra. Mazda created this engine primarily for the MX-3 but additionally used it within the Japanese-market Eunos 500 and choose different fashions. This was a part of its failed experiment with creating separate manufacturers concentrating on completely different market segments. Japan’s automobile taxes enhance with engine displacement, so protecting it underneath 2.0 liters supplied financial savings for home patrons on the time.

Advertisement

In the tip, no different automobile obtained this unusually small V6, and it is unlikely any ever will.

During the Sixties, drastic modifications passed off within the motorbike business as British marques like BSA and Triumph started shedding their dominance to Japanese bikes. It appears that just about in a single day, riders deserted their British twins as Japanese bikes grew in measurement and displacement. Kawasaki initially constructed a BSA copy however noticed restricted gross sales with it. Going again to the drafting board, engineers noticed that they’d an awesome 350cc twin already available on the market and determined so as to add a cylinder.

Advertisement

Kawasaki launched a brand new mannequin in 1969 known as the Mach III, aka H1. It featured a brand new 500cc two-stroke triple that left anybody following in a cloud of blue smoke with their ears ringing from the cacophony of indignant bees emanating from the tailpipes. For a hair underneath $1,000, patrons obtained a easy however slick light-weight bike filled with energy that might clear a ¼-mile in 12.96 seconds and hit 125 mph. Oil injection, CDI ignition, and an absence of valve changes made possession hassle-free, leaving time to terrorize the streets with impromptu avenue races.

The H1’s success led Kawasaki to up the ante with a brand new 750cc Mach IV H2 triple in 1972. With 74 horsepower, this light-as-a-feather avenue bike was rather a lot to deal with. The Kawasaki triples gained a status, incomes them the nickname “Widowmaker.” While these tales might have been overblown, the reign of the two-stroke triple ended as four-stroke four-cylinders took over the market.

Advertisement

Among engine design selections, the five-cylinder is a rarity. Four, six, and eight-cylinder engines dominate the business and have accomplished so for properly over a century. The first five-cylinder engine got here in 1974 with the Mercedes-Benz 3.0-liter diesel for its 300D sedan. Audi adopted with its personal gasoline model a couple of years later, and Volvo finally joined the pattern.

Advertisement

Five-cylinder engines are solely attainable with gasoline injection. They have been by no means created to be used with carburetors attributable to uneven gasoline supply and the problem of designing an consumption manifold for the odd variety of cylinders. Even if these points have been resolved, the firing order, attributable to a number of engineering and physics-related causes, made it impractical. But with gasoline injectors at every cylinder, these issues are eradicated.

This engine design is an odd duck from the beginning, however thousands and thousands of vehicles show it might work. What you could not know is {that a} Japanese automaker joined the fray within the Nineteen Nineties. Honda made a 2.5-liter five-cylinder for the Vigor, bought because the Acura Vigor within the States. The longitudinally-mounted inline-five, with the transmission positioned behind it, nonetheless drove the entrance wheels. It additionally made its manner into the Acura TL however disappeared in 1998, remaining the one inline-five to energy a Japanese automobile mannequin thus far.

Advertisement

Mazda guess that its typically unconventional strategy to constructing vehicles might repay within the luxurious market of the Nineteen Nineties, as its friends had efficiently launched Acura, Lexus, and Infiniti. Playing catch-up, Mazda deliberate to launch a brand new luxurious model known as Amati. Its timing couldn’t have been worse, as Japan’s economic system went right into a tailspin, forcing Mazda to scrap its luxurious undertaking totally.

Advertisement

Mazda salvaged its failed undertaking by releasing one in all its Amati fashions because the Millenia, providing the highest trim with an engine that includes an uncommon working cycle. In the Millenia S mannequin, patrons might go for a supercharged 2.3-liter V6. The supercharger was crucial because the V6 operated on the Miller Cycle as a substitute of the Otto Cycle of just about all different engines. Essentially, this cycle retains the consumption valve open longer and will increase effectivity via advanced physics which can be tough to clarify briefly. More importantly, this necessitates the inclusion of a supercharger to forestall the compressed gasoline/air combination from escaping via the consumption manifold. Therefore, the supercharger will not be a high-performance accent, however a high-efficiency requirement.

Advertisement

The Millenia turned out to be a reliable however unexciting automobile, fitted with upscale trim aggressive with a Lexus or Acura. Regardless, gross sales didn’t pan out, and Mazda’s experiment with luxurious stalled. The intelligent and weird Miller Cycle V6 additionally disappeared when Millenia manufacturing ended, because it didn’t deliver vital advantages to justify its complexity and added manufacturing expense.

Although the five-cylinder engine featured in choose Honda cars stays comparatively obscure, its motorbike division as soon as made one with a extra vital affect. Honda created a sensation with its 1958 Super Cub, which went on to be a worldwide success. And as its diminutive commuter bike gross sales skyrocketed, Honda set its sights on the observe, coming into the 1959 Isle of Man TT and gaining its first all-out win on the 1961 Spanish Grand Prix.

Advertisement

Development of first-class racing bikes tuned to win continues to be an integral a part of Honda’s DNA. While Honda had reluctantly used 500cc two-stroke machines as the foundations permitted, a MotoGP rule change permitting four-stroke bikes as much as 990cc spurred it to develop a brand new energy plant. The new MotoGP bike then had an engine with a extremely uncommon setup: a V5.

With three cylinders up entrance and two within the rear, one may suppose this engine could be inherently unbalanced. The reverse is true, as engineers modified the 90-degree V-angle of a V4 engine to a 75.5-degree V-angle and used the extra piston to resolve balancing points. This resulted in an engine extra compact than a V4 with the identical displacement whereas eliminating the load of a steadiness shaft. The V5 produced as much as 260 horsepower, pushing the Honda crew to a number of victories and establishing four-stroke dominance.

Advertisement

While Yamaha Motor Company typically receives reward for its wonderful grime bikes, quads, and watercraft, most individuals probably know little of its work with cars. However, the motorbike producer often lends its experience to automakers, similar to when Toyota employed Yamaha to assist develop the 1965 Toyota 2000GT, top-of-the-line Toyotas ever designed.

Advertisement

Saddled with a lineup of unstylish and growing older vehicles within the early ’80s, Ford set out to show issues round with a brand new sedan. Taking cues from Europe and Japan, it launched the Taurus in 1985 — a automobile that turned issues round for Ford and have become a sensation.

To create what would grow to be the Taurus SHO, Ford collaborated with Yamaha to design a completely new 3.0-liter DOHC V6 engine, engineered particularly for high-performance purposes. Yamaha created new aluminum cylinder heads, every carrying a pair of camshafts to regulate a complete of 24 valves, elevating its redline to 7300 rpm and including 80 horsepower. What made this engine actually uncommon was that Yamaha not solely designed but additionally manufactured it for Ford, reworking the Taurus into an iconic 220-horsepower sleeper.

Advertisement

Although it has not but been launched, Honda’s latest engine is making waves for a number of uncommon engineering selections. While particulars are nonetheless scant following its unveiling at EICMA 2024, it does current us with what seems like extremely intelligent and distinctive engine packaging.

Advertisement

Triples is probably not the most typical engine structure for bikes, however they’re removed from uncommon. However, the triples we’re most accustomed to align the cylinders in a row, both longitudinally or transversely mounted. This new Honda block sports activities a V3 association with two ahead cylinders and a center cylinder canted towards the rear. This association will not be fully novel as Honda as soon as raced a two-stroke 500cc V3 with two cylinders up and one down, all ahead dealing with. Yet, this new engine might be worlds aside in some ways, most importantly as a result of it seems poised to enter manufacturing.

Honda releasing a brand new V3 will not be essentially groundbreaking, however including a supercharger — extra particularly, an electrical supercharger — definitely is. Currently, solely electrically assisted turbochargers are present in manufacturing autos, as the ability required for a completely electrical one makes the idea infeasible. While Honda has not but launched technical specs about this new engine, it appears to be leveraging the comparatively small displacement with battery energy alone for compelled induction. It seems promising, however time will inform whether or not or not it really works in the true world.

Advertisement

Like its counterparts, Suzuki’s success is rooted in dependable machines constructed with confirmed expertise and conventional layouts. When an inline-4 engine is highly effective, dependable, and environment friendly engine, sticking with it is smart. Yet, in racing, experimenting with unorthodox designs can repay.

Advertisement

Back within the ’70s, Suzuki sought to enter Grand Prix racing within the 500cc class, the place MV Agusta’s highly effective four-stroke triple dominated. At the time, Suzuki solely made small two-stroke bikes again then, making it a extremely unlikely competitor. Determined to make its mark, the Suzuki improvement crew for the undertaking, consisting of two individuals for the engine and two for the chassis, started working on a brand new two-stroke, principally because it was what they knew. It was a selection that had them branded as loopy.

The crew used an engine structure beforehand used for smaller engines, upsizing it to suit the Grand Prix 500cc class. This was a square-four configuration, with a pair of cylinders up entrance and one other within the rear — joined by gearing on their particular person crankshafts. It is a cumbersome design, however with out camshafts and valves, it would not endure from being obese. The uncommon engine design resulted in a number of championship titles and established two-stroke engines as viable in competitors. Success on the observe translated into gross sales success, and the RG500 avenue bike copied most of what prospects noticed on the observe, making it a priceless machine right now.

Advertisement

For a few years since its introduction, Lexus adopted its mantra, “The relentless pursuit of perfection.” For greater than a decade, this meant constructing the best luxurious vehicles attainable, and Toyota largely achieved its objectives. Lexus rapidly grew to become acknowledged for its give attention to providing luxurious with Toyota’s legendary reliability. While Toyota did properly providing supremely comfy vehicles, few may say they have been thrilling. That was meant to vary in 2010 with the discharge of the LFA.

Advertisement

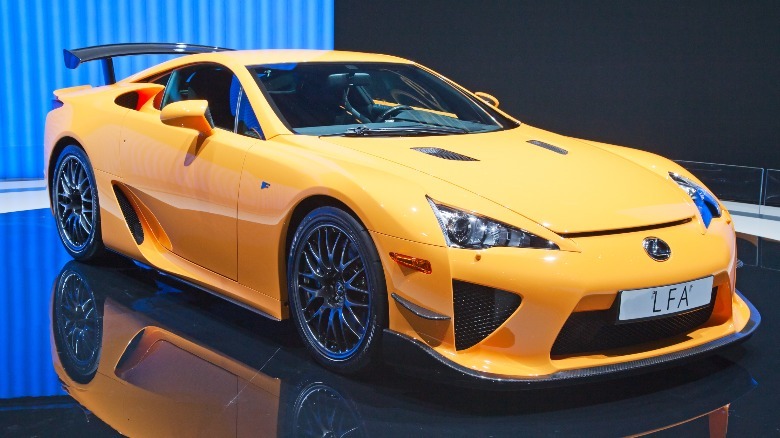

The fruits of a decade of improvement, the Lexus LFA surprised everybody upon introduction. It represented Toyota’s uncompromising dedication to creating the best high-performance luxurious automobile — no bills spared. Early in its improvement, chief engineer Tanahashi Haruhiko turned to Yamaha for assist in creating the right engine. Yamaha agreed however emphasised that Toyota’s cautious and conservative strategy to constructing vehicles wanted to be put aside to push the envelope. Fortunately, he listened, and Yamaha constructed a masterpiece.

Fedor Selivanov/Shutterstock

Aside from racing or heavy-duty diesel engines, the Lexus LFA’s V10 is without doubt one of the few manufacturing V10 engines developed by a Japanese firm. The naturally aspirated V10 produced peak horsepower at an unbelievable 8,700 rpm, simply wanting its 9,000 rpm redline. Yamaha Motor and Yamaha Corporation collaborated to design the acoustic properties of the Lexus LFA’s engine, making a sound that enhances the driving expertise. No different engine by Toyota has since matched the perfection of the Lexus LFA V10, and few engines by others even come shut.
