New Delhi [India], June 26 (ANI): IBM debuted the world’s first sub-1 nanometer chip expertise, introducing a transistor structure on the 0.7 nanometer, or 7 angstrom node.

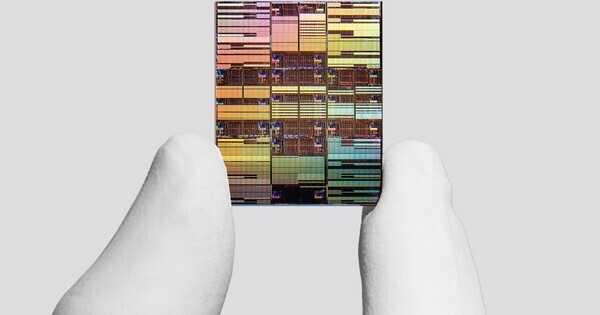

IBM famous that this new chip packs almost 100 billion transistors into an area the dimensions of a fingernail. This represents almost twice the transistor density of the corporate’s 2-nanometer chip, which was launched in 2021.
Microchips play essential roles in computing, residence home equipment, communication gadgets, transportation networks, and important infrastructure programs.
IBM initiatives a path to industrial manufacturing for the sub-1 nanometer expertise inside the subsequent 5 years.
The growth depends on structural and materials modifications, particularly a three-dimensional nanostack structure. As per the corporate, printed technical reviews venture that the design gives as much as a 50 per cent enhance in efficiency, or a 70 per cent discount in power consumption in comparison with present 2-nanometer nodes.
This functionality is predicted to assist generative synthetic intelligence, cloud infrastructure, and next-generation digital gadgets.
‘IBM’s newest chip breakthrough marks a landmark second in computing, pushing expertise past the nanometer period to the size of atoms,’ mentioned Jay Gambetta, Director of IBM Research and IBM Fellow.
He added, ‘With our new nanostack structure, we’re not simply making smaller transistors, we’re reinventing how chips are constructed to ship dramatically extra energy and power effectivity.’
The design vertically stacks and staggers transistors by 3D sequential integration, permitting totally different materials combos inside every layer to optimize energy and efficiency independently.
According to knowledge from IBM, researchers validated the structure by ultra-thin dielectric bonding in complementary metal-oxide-semiconductor (CMOS) integration, demonstrating dual-channel engineering and purposeful CMOS inverter operation.
Research offered on the VLSI 2026 convention additionally confirmed that the structure offers a 40 per cent scaling discount in static random-access reminiscence (SRAM), which aids high-bandwidth knowledge calls for for synthetic intelligence workloads.
Gambetta said, ‘This industry-first innovation continues IBM’s legacy of main in next-generation applied sciences and units the inspiration for the subsequent period of computing.’
The 0.7 nanometer expertise marks the primary time logic scaling extends under the 1 nanometer threshold into angstrom-level dimensions. While fashionable node names symbolize generations of producing expertise quite than precise bodily measurements, the group initiatives that the structure offers a semiconductor roadmap for at the very least a decade of future scaling.
Research and growth for this venture happened at a facility in Albany, New York, in collaboration with companions together with Lam Research Corp., Tokyo Electron, and SCREEN Semiconductor Solutions, Ltd.
The facility is scheduled to combine a High Numerical Aperture Extreme Ultraviolet lithography software developed by ASML to print the exact circuits. (ANI)
